Brass thermostatic mixing valves for heating systems

In the process of burning, among others also water releases from burning fuels in the form of steam. When the flue gas temperature is high enough, the steam comes out through a chimney together with flue gas. However, if the flue gas cools down at a certain spot, condensation occurs. Condensate is formed, containing further combustion products that can be very aggressive, esp. when burning wood or solid fuels, and can cause corrosion very quickly as well as clog heat transfer surfaces.

Corrosion will not occur if the heat transfer surfaces are warm enough because condensation will not occur above certain temperatures. The heat transfer surfaces will be warmer and their service life longer. TSV1 and TSV2 thermostatic mixing valves mix cold return water with hot water from the boiler outlet. Thus the whole heat exchanger (heat transfer surfaces) is kept warmer, at temperatures that will not allow condensation to occur and so clogging and corrosion will be prevented.

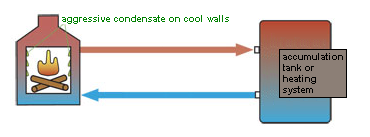

without mixing valve

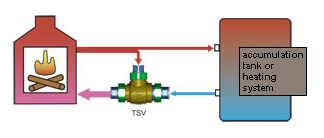

with mixing valve TSV





Thermostatic mixing valve TSV1

DN 32 with 5/4“ male thread, for easy mounting supplied with a screw joint of 1/2“, 3/4“ and 1“ female thread or with a screw joint for soldering on Cu DN 28. Recommended for boilers of max. 25 kW output.

TSV1 1/2  - thermostatic valve incl. screw joints 1/2″ 6543
TSV1 3/4  – thermostatic valve incl. screw joints 3/4″ 6559
TSV1 1  - thermostatic valve incl. screw joints 1″ 6561
TSV1 28  - thermostatic valve incl. screw joints for copper soldering, DN 28 7012





Thermostatic mixing valve TSV2

DN 50 with 2“ male thread, for easy mounting supplied with a screw joint of 5/4“, 6/4“ and 2“ female thread. Recommended for boilers of 26-100 kW output.

TSV2 5/4  – thermostatic valve incl. screw joints 5/4″ 6544
TSV2 6/4  – thermostatic valve incl. screw joints 6/4″ 6563
TSV2 2  – thermostatic valve incl. screw joints 2″ 6564
