2-way, threaded, spring-return with el. motor

ZONE VALVES, THREADED, SPRING – RETURN WITH ELECTRIC MOTOR
TYPE: SF

Materials:

Valve body, cover, ball-bearing pin : brass
Shut-off ball : EPDM
Return springs : stainless steel
Motor cover : UL 94 NO self-extinguishing ABS
Static O-ring seal : EPDM
Dynamic O-rings seal : VITON



Type of the valve/Nominal diameter DN
identification number
Max. diff. pressure
DPmax
Kvsm3/h
SF 15-2
7.001.01574.0
SF 15-2E
7.001.01724.0
SF 15-2M1
7.001.01586.0
90 kPa 6
SF 15-2-EB
7.001.01693.0
SF 16-2.EB
7.001.01682.0

SF 20-2
7.001.01603.0
SF 20-2E
7.001.02066.0
  90 kPa 7
SF 20-2EB
7.001.01704.0
SF 20-2M1
7.001.01618.0

SF 25-2
7.001.01639.0
SF 25-2E
7.001.02283.0
  90 kPa 9
SF 25-2M1
7.001.01654.0
SF 25-2-B
7.001.02064.0




Rated pressure PN 10
Max. working temperature max 110°C
Max. room temperature pro 60°C
Voltage U 24V, 230V
Absorbed power P 5-6W
Degree of protection IP 20
Aux. contact capacity   3A
Opening time s 10
Closing time s 6
Cable length mm 550

 Main characteristics :

These valves are powered by an electric motor and can assume two operating positions depending on whether or not the motor is activated. One or two auxiliary switches can be installed on request and be actuated when the valve switches. Valves are equipped with an external lever for manually positioning the shut-off ball in its central position.

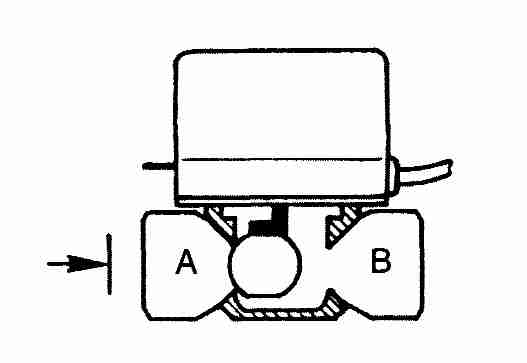

Without electric power supply

Operation :

When it is without electricity the valve is positioned as in fig.1 : the valve is closed. When the electrical supply is activated the motor overcomes the force of the spring and moves the ball from way A to an intermediate position in about 10 sec. and the shut-off ball remains in this position until the electrical power supply is deactivated( fig.2). When the electrical power supply is deactivated the return spring brings the shut-off ball back to the way A in about 4 sec.

Using the manual lever:

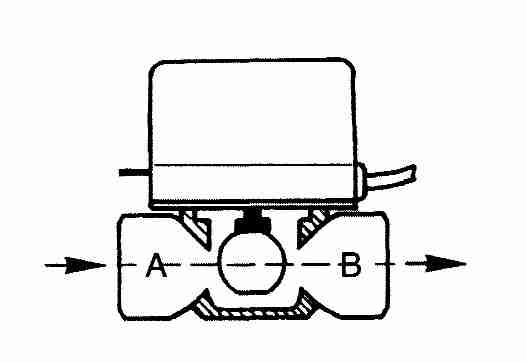

With electric power supply

The lever is positioned on the side of the servomotor that permits manual positioning of the shut-off ball in an intermediate position(fig.3). This is useful when filling or emptying the hydraulic system. The lever reset, from manual to automatic, takes place automatically whenever the valve is activated by electricity.

Auxiliary switches:

A single pole microswitch (M1 version), a two-pole microswitch (M1S version) or two microswitches (M2 or M2S version) can be mounted on all versions. There is a special kit for mounting the auxiliary single-pole microswitch even in version that do not carry it as an original part (M1 kit). M1S kits, M2 or M2S cannot be installed on versions which do not mount them originally.

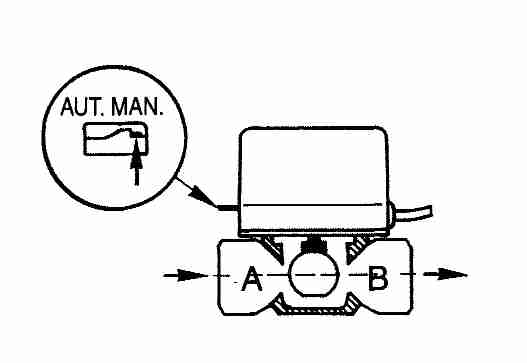

Manual lever engaged



M1 - control microswitch
- If the identification is without ending, the thread is internal.
E - external thread, ball connections for copper tube
EB - - external thread for copper, ball connections for copper tube
B - internal thread



TYPE DN A B C D E

With internal thread

SF 15-2 G1/2″ 92 46 20 85 105
SF 20-2 G3/4″ 92 46 20 85 105
SF 25-2 G1″ 92 46 20 84 104



TYPE DN A B C D E

With external thread

SF 15-2E G1/2″ 92 46 20 84 100
SF 20-2E G3/4″ 92 46 46 84 130




TYPE A

Connections for Cu-tubes - EB



Connections for Cu-tubes - B

SF 15-2EB 53
SF 16-2EB 53
SF 20-2EB 53



Valve identification

Type Nominal dimensions
No. of ways Type of fittings Auxiliary microswitches Voltage V
SF 15 G1/2″ or copper tube diameter 15 2 - internal thread

  E – external thread

  EB – compression seal for Cu-tubes

  B – compression seal for Cu tubes for DN 25

M1 1 single-pole V
24 24
16 copper tube diameter 16 M1S 1 single-pole 110 110
20 G 3/4″ or copper tube diameter 22 M2 2 single-pole 230
20 G1″ or copper tube diameter 28 M2S 2 two-pole 240 240

Example SF 25-2E M1S 24:: two-way valve, G1″ with external thread and 1 auxiliary two-pole auxiliary microswitch, voltage 24V.

Application example as 2-way zone valve

The fig. illustrates a typical installation layout for 2-way zone valves. It is necessary to use SF valve with a micro-limit switch in order to stop the pump when all the valves are closed. Also other parts available in the market are necessary such as differential by-pass valves to avoid bothersome noise and to ensure a constant pump pressure.

Application example giving priority to the hot water heater

This system including two-way valves is used when the delivery rate at the system is different from the hot water storage tank requirements. In this case valves with different outlets can be chosen.

Legend:

Z Z zone served by the valve
C boiler
P circulation pump
SF zone valve
I heating system
TA zone room thermostat
TB hot water storage tank thermostat (60°C)
